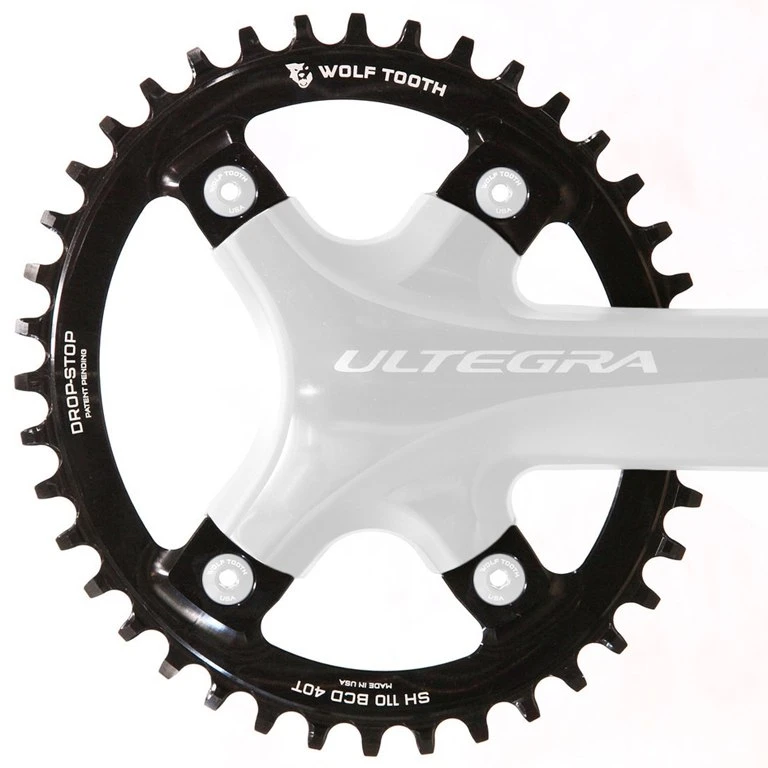

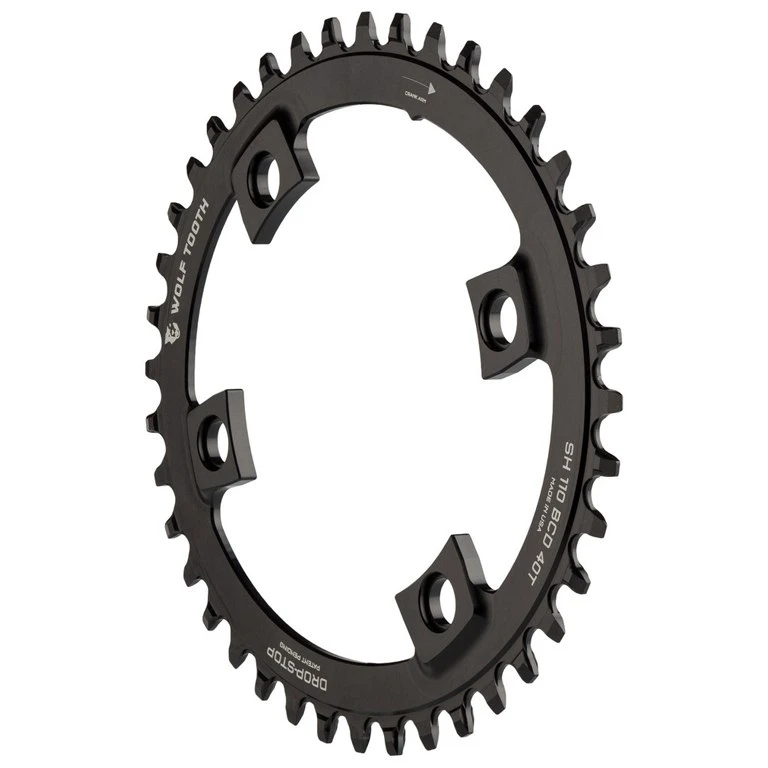

Wolf-tooth Wolf Tooth Elliptical – Single Chainring For Shimano 110 BCD Asymmetric 4-Bolt – Drop Stop – Black

Wolf Tooth won’t try to convince you that elliptical (or oval, the same thing) chainrings will change your life … but they might! What Wolf Tooth can say for sure is that they provide an efficiency benefit and smoother power output. With this, you will experience the benefits of better traction, especially with technical climbing, and faster acceleration.

The proprietary design has ovality of 10% and timing of 112° after TDC (top dead center). These values provide the benefits of an oval ring without the drawbacks of greater ovality or more aggressive timing.

The simplest way to explain how they “feel” is that where your pedal stroke is weakest it feels like you have a 2 teeth less on the chainring and where you have the most power it feels like you have 2 more teeth. They feel this way because with the radius of the chainring constantly changing, the torque needed to turn the cranks is constantly changing to better match your power output. Example: a 38t chainring feels like a 36t in the weak part of your pedal stroke and a 40t in the part of the stroke where your legs have the most power.

Complementing products of Wolf Tooth Elliptical – 110 BCD Asymmetric:

Chainring bolts – Wolf Tooth recommends their 6mm bolts which are optimized of single ring mounting.

Compatibility of Wolf Tooth Elliptical – 110 BCD Asymmetric:

• These rings are for use with Shimano 110 BCD Assmetric 4-bolt cranks.
• Compatible with Dura Ace 9000, Ultegra 6800, 105 5800, Tiagra 4703, and Tiagra 4700.
• Mounts in the big ring position of the cranks but is offset inward for perfect chainline.
• For 1×9, 1×10, or 1×11 drivetrains.
• Compatible with all 10 and 11 speed chains.
• If using a 9 speed drivetrain use a 10 speed chain (shifts and works well on a 9 speed drivetrain and fits the ring tighter for better chain retention).

Tech Specs of Wolf Tooth Elliptical – 110 BCD Asymmetric:

• Design and manufactured in the Minneapolis, MN USA
• Wolf Tooth’s patent pending Drop-Stop wide/narrow tooth profile for the ultimate chain retention and mud shedding ability.
• Material: 7075-T6
• Chainline: 44mm
• Weight: 38t – 66g, 40t – 74g, 42t – 81g

If you plan to ride in very muddy conditions, Wolf Tooth recommends a chainguide or chainkeeper in addition to a clutch-type rear derailleur! Without these precautions, you may experience chaindrops and/or chainsuck.
Fitting for derailleur: 10-speed ||| 11-speed
Included in delivery: 1 chainring
Material: CNC machined 7075-T6 aluminum
Weight supplement: 38 t)
approx. 74 gram (40 t)
approx. 81 gram (42 t)
(manufacturer information
